Brand New Custom BBQ Smoker Pit and Charcoal Grill
Total Cooking Surface:
23 sq. ft.
Pit (Reverse Flow)

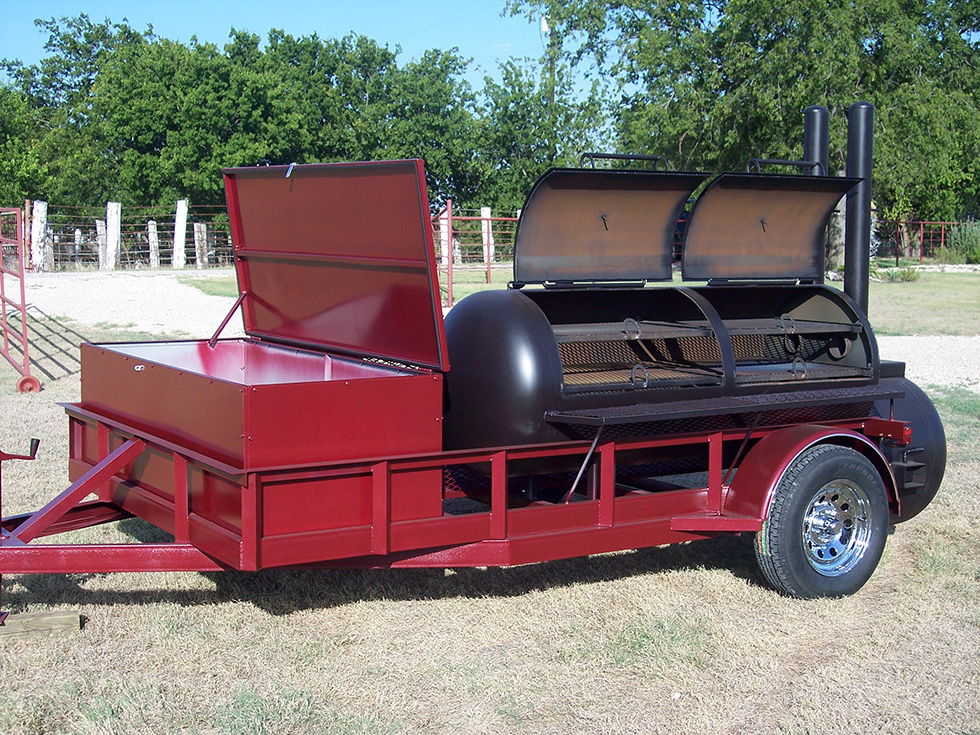

Total pit measures 9ft long and 30” wide. It consists of a 7ft long main chamber that’s 30 inches in diameter. Two cooking doors with counterweights make opening a breeze. Two slide out cooking racks per door measuring 32” by 28” and 32” by 23” giving you right at 23 square feet of cooking surface. The pit is designed with industry standard Reverse Flow. The baffles are made in separate pieces for adjustability. No more hot spots. Contact me if you’d like a description of its characteristics. I have also taken this concept a step farther and made the reverse flow baffles removable. In doing this you can turn this smoker into a professional Charcoal Grill. Simply pull the baffles out, insert the 2ft by 2ft charcoal boxes and start cooking steaks. The charcoal tray receives air from the firebox vents the same was as it would when cooking with wood. Only difference is the charcoal try is positioned in place of the Baffle. The charcoal box is also adjustable to get you the proper heat you desire when grilling steaks etc. See photos for picture explanations. I will try to show a picture of the baffles installed and then will the charcoal trays in position. The pit has a 2ft long by 30” wide firebox with (3) 6” by 4” vents for ample airflow. Sitting on top of the firebox is a 8” wide flat surface that is used to cook beans or keep your cooking sauce warm. There are 2 stacks with rain caps set to pull the heat out at “cooking grate level.” They are 4.5” in diameter and measure a little less than 4ft long. Setting them at the same level as the cooking racks keeps the heat in the cooking chamber longer making the pit burn less wood and making the stacks almost 4ft long allows for a more sustained draw of smoke from the cooking chamber.
Stainless Steel cooking racks quoted on request!!!

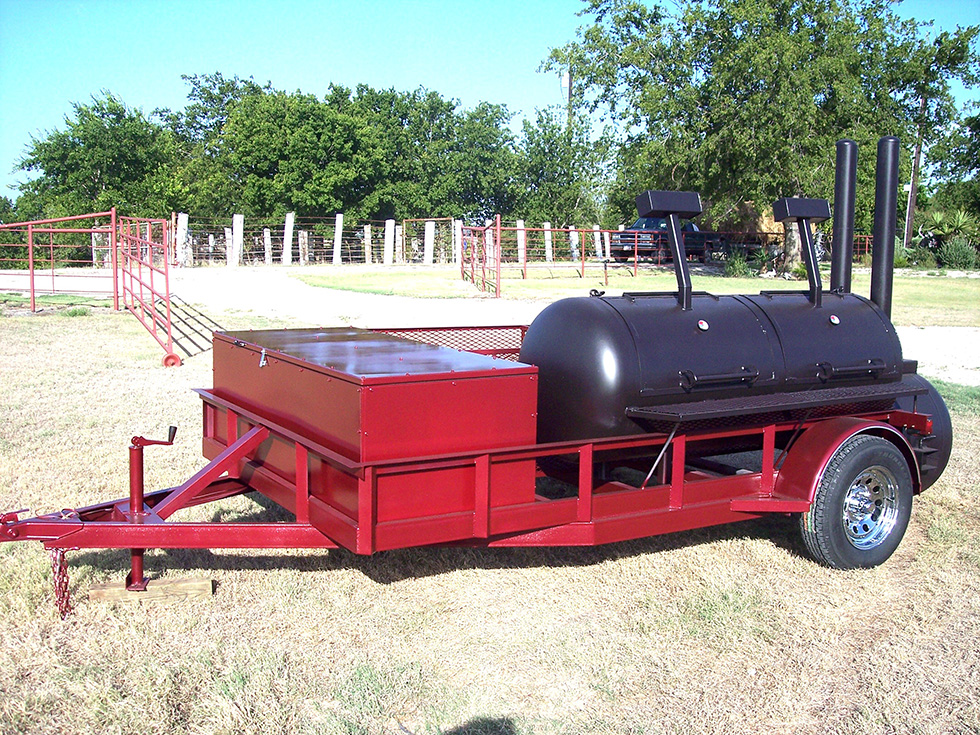

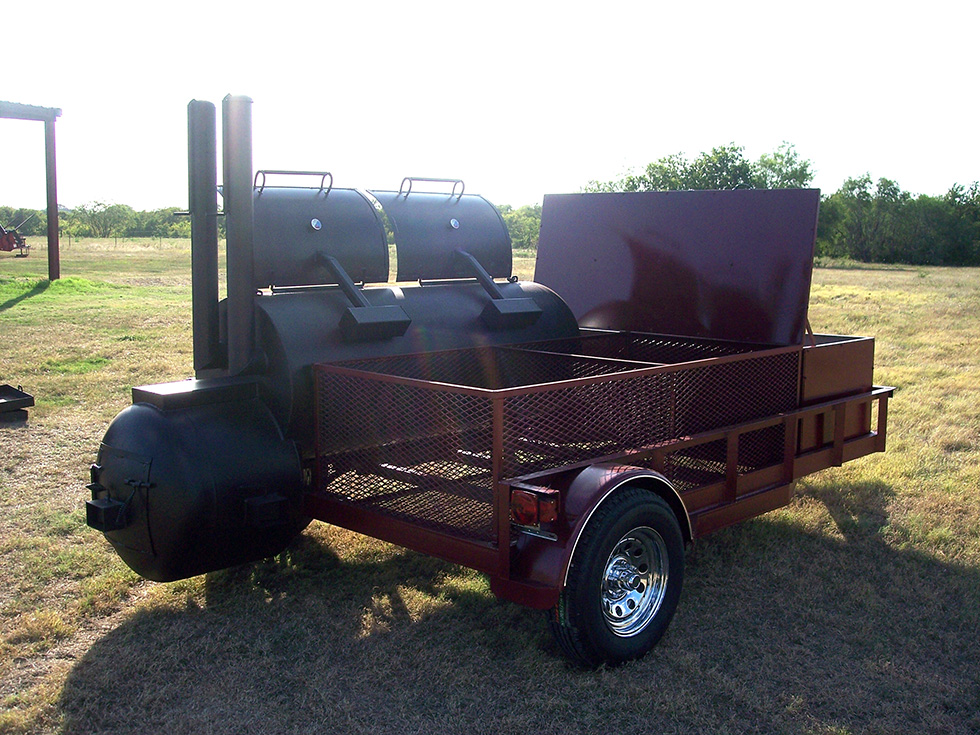

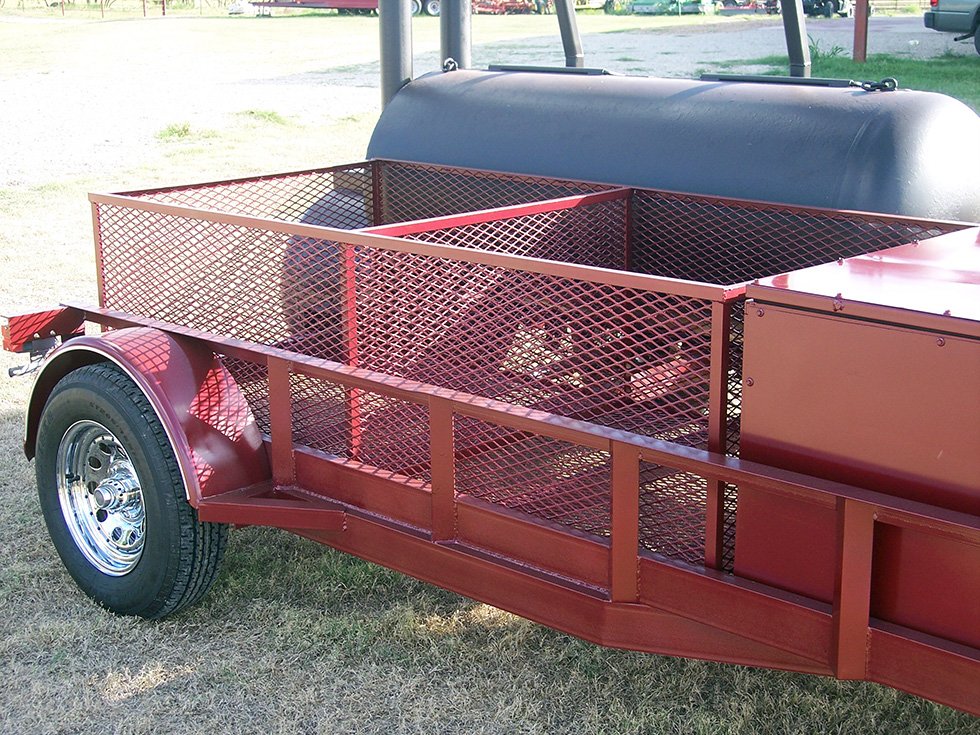

Brand new 76” wide by 10ft long trailer. On the opposite side of the pit is a 7ft long by 3.5ft wide by 2ft tall storage rack perfect for coolers or wood storage. It has a divider in the middle to keep coolers and wood separate. Also, on the front of the trailer is a 6ft by 30” wide by 2ft deep enclosed and lockable Storage box. Have things that need to be kept out of the rain or sun; put them in hear. The Trailer is constructed with 4” C-channel, a 3500lb axle, safety chains, lights NEW TIRES, and your choice of either Silver or Chrome wheels. For Chrome wheels, add $250. see photos for chrome vs. silver.
Contact us to get this smoker on a different size trailer.
Main chamber doors and firebox door are lined with flat-strap for less heat escape. Spring handles on vents and doors to keep hands from getting burned etc. Temp gauges, and 10” shelf around the pit etc. 1200-degree high heat paint. Personally pre-seasoned with Pecan wood.
All in all this is a very efficient unit. The main chamber and firebox are constructed from ¼” steel. It will last a very long time and holds heat better than any I’ve seen. The reverse flow system, counterweighted doors, dual stacks at grate level, and added ability to be turned into a Charcoal Grill makes these pits one of a kind and a super flexible cooking unit. Lots of storage both outside and enclosed… This unit is built with the same standards as the large competition style pits that I build that are for sell in other listings. No quality is lost.
I can have your initials, ranch brand, or logo cut out with a computer driven plasma cutter and suspended on top of the pit for an added touch of personalization. Contact me for details.
