Brand New Custom BBQ Pit with Slow Smoker and Dual Charcoal Grill
Total Cooking Surface
83 sq. ft.
Serious Rig. Cook a brisket, smoke sausage, and charcoal grill a steak at the SAME TIME
Pit (Reverse Flow)

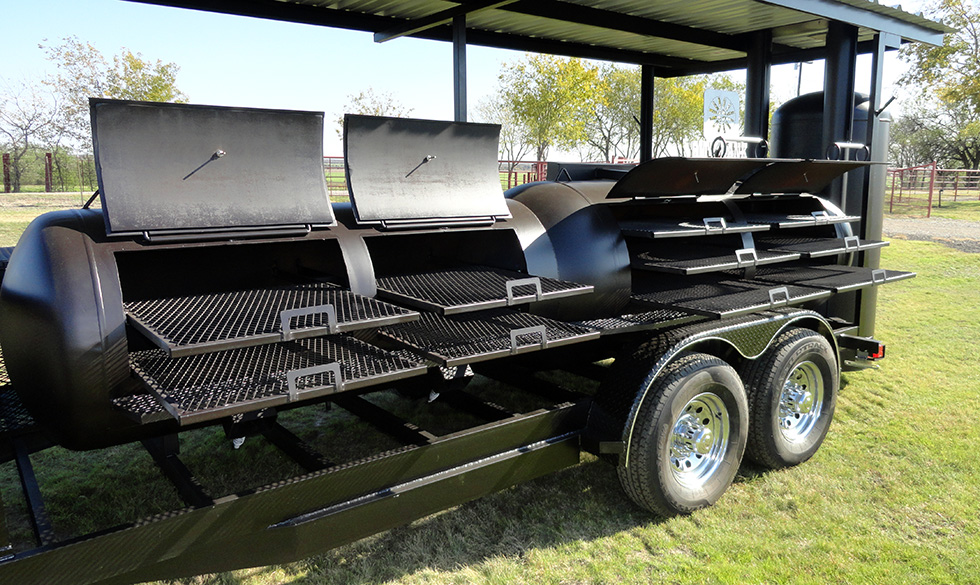

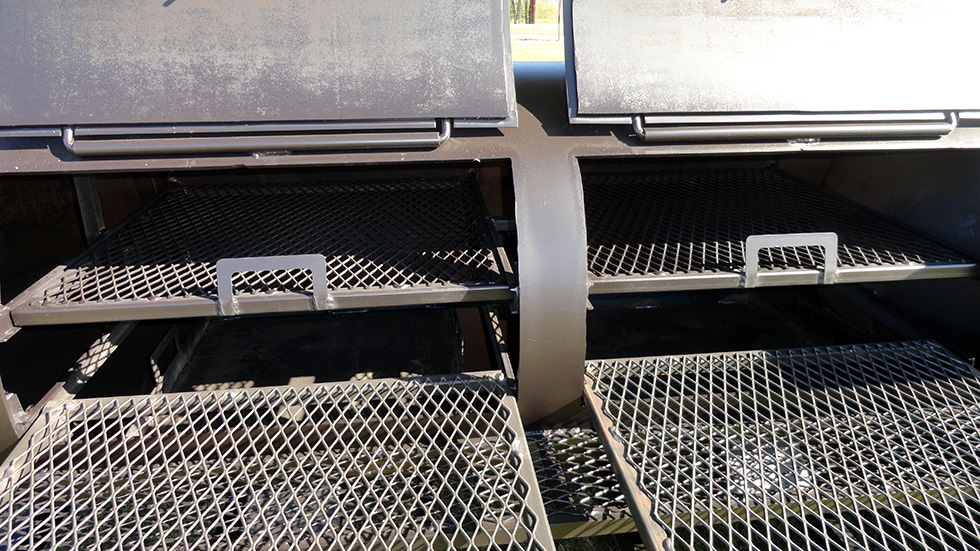

Total pit measures 17ft long and 36” wide. It consists of an 8ft long main chamber that’s 36 inches in diameter. Two cooking doors with counterweights make opening a breeze. Three slide out cooking racks per door measuring 36” by 36” and 36” by 33” and 36” by 24” giving you right at 47 square feet of cooking surface!!! The pit is designed with industry standard Reverse Flow. The baffles are made in 2 separate pieces for adjustability. No more hot spots… Contact me if you’d like a description of its characteristics. I have also taken this concept a step farther and made the reverse flow baffles removable. This makes cleaning a lot easier. There are 2 stacks with rain caps set to pull the heat out at “cooking grate level.” They are 6” in diameter and measure 5ft long. Setting them at the same level as the cooking racks keeps the heat in the cooking chamber longer making the pit burn less wood and making the stacks 5ft long allows for a more sustained draw of smoke from the cooking chamber.
Stainless Steel cooking racks quoted on request!!!
The pit has a 30” tall by 30” wide firebox with (3) 6” by 4” vents for ample airflow and cooking heat.

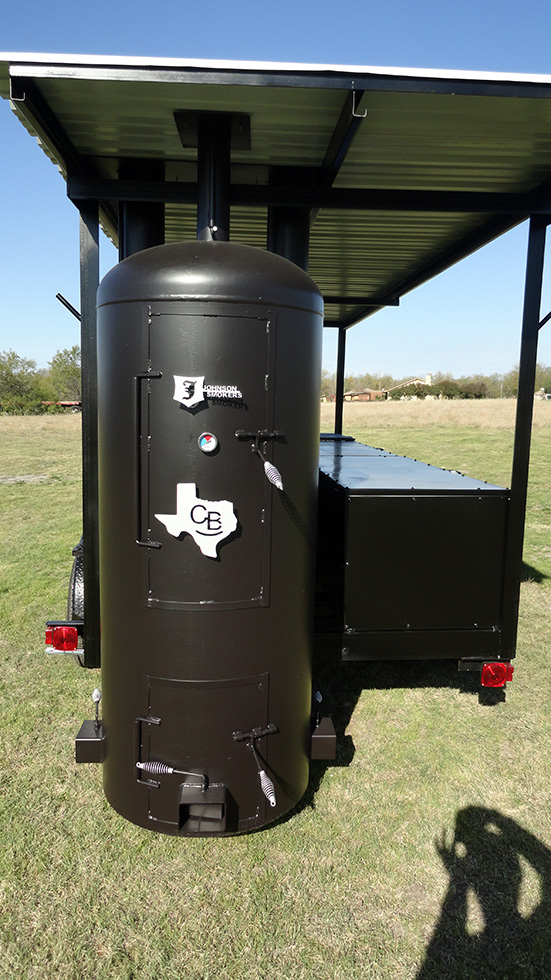

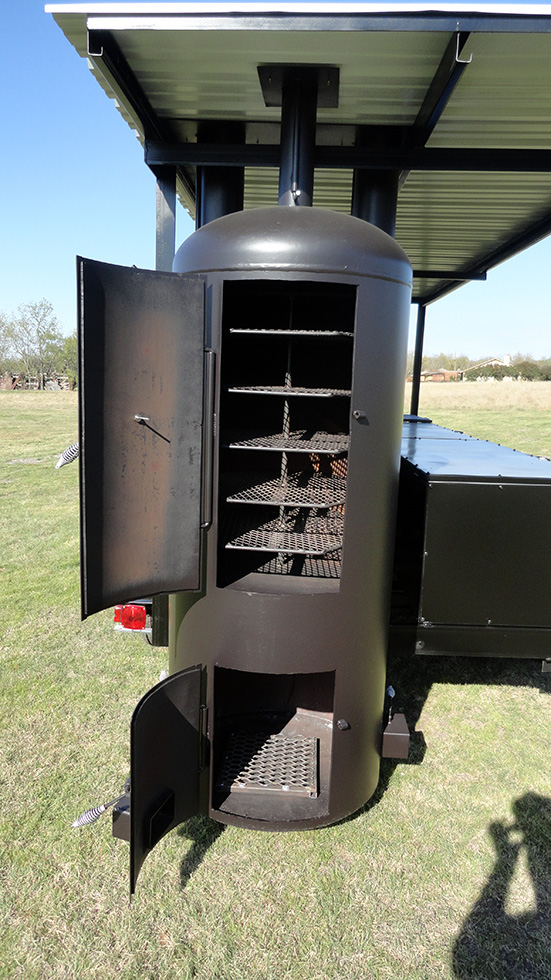

Sitting on top of the firebox is a 30” diameter by 4ft tall smoker. It is connected to the main chamber by a 6” by 4” vent that can be opened for smoking or shut off completely turning the smoker into a warmer. Inside the smoker is 5 rotating cooking racks that have a combined cooking surface of about 16 square feet. The smoker has its own temp gauge, 4.5” stack and spring steel handles.
Welded on the front of the main cooking chamber is a 6ft long by 30” diameter Charcoal Grill. It is connected to the main chamber via a 6” by 4” vent that can be opened or shut. The Charcoal grill contains 4 cooking racks, (2) 28” by 27” and (2) 28” by 24” for a total grilling surface of around 20 square feet. The grill has 2 adjustable charcoal trays measuring 2ft long by 2ft wide and twin 6” by 4” vents to feed the charcoal fire. Finally the chargrill has twin 4.5” diameter stacks with ran caps. See photos.
If you decide to use the entire pit surfaces to cook using the firebox you have a grand total of 83 sq ft of cooking surface!!!

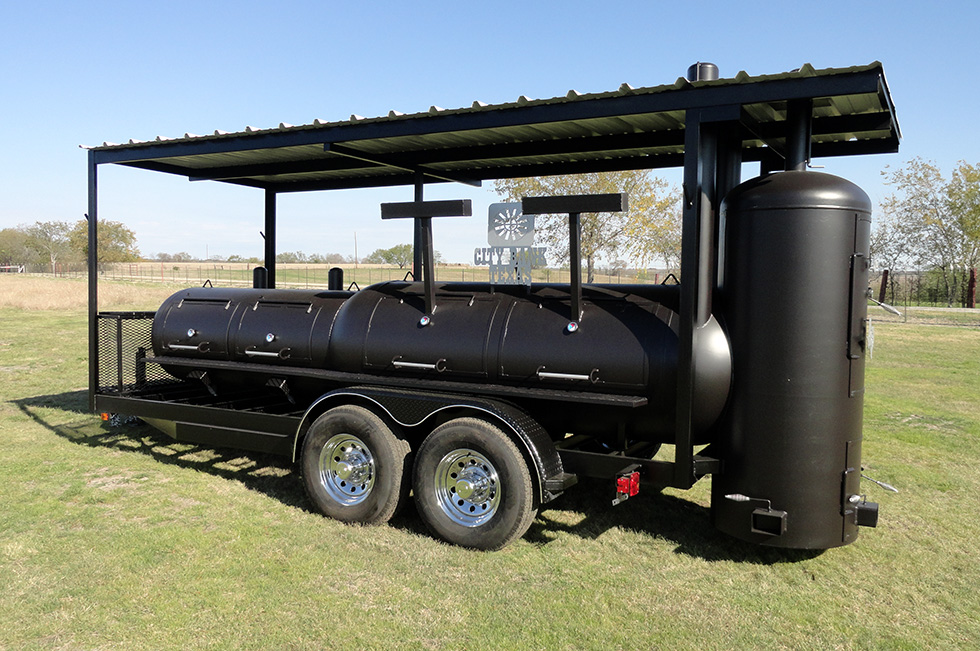

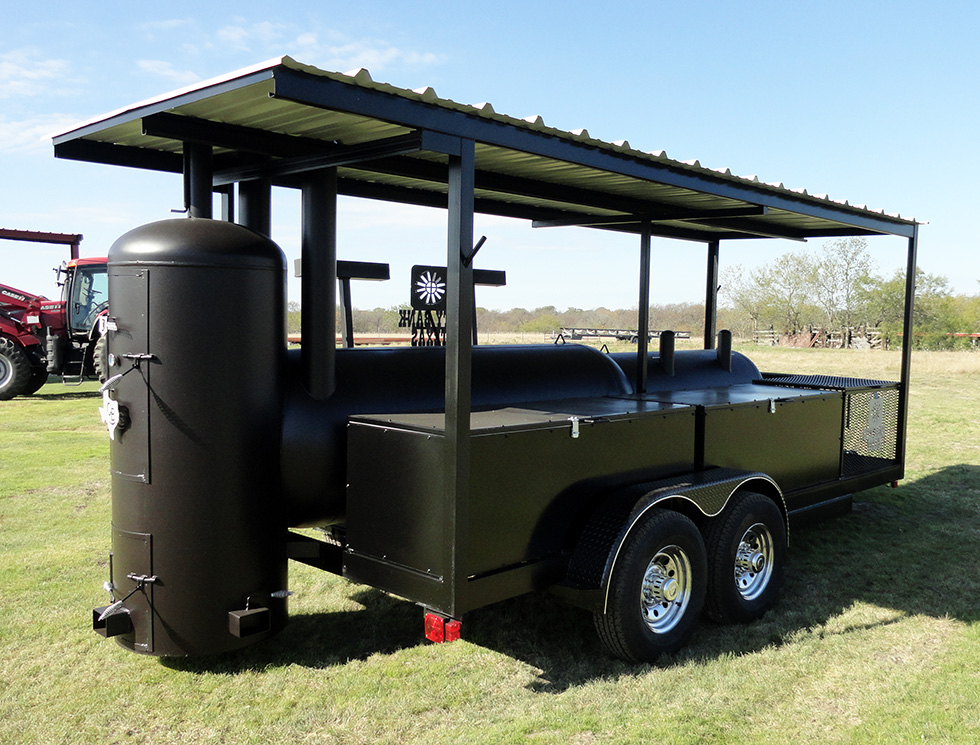

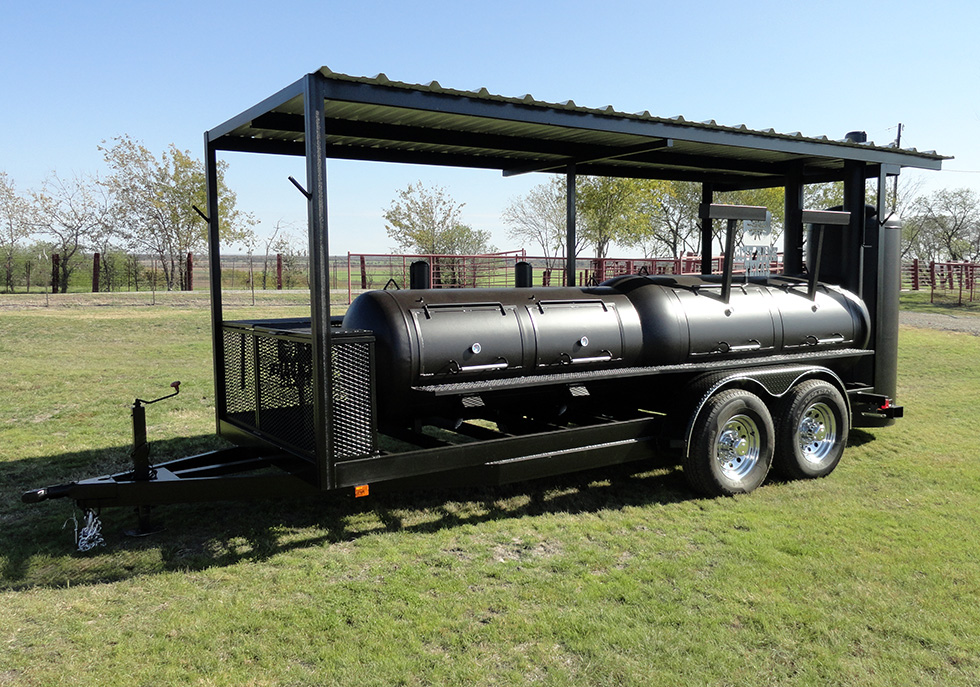

Brand new 76” wide by 16 ft. long tandem axle trailer with custom black paint. 7,000lb jack on the front. 6ft by 1ft by 2ft tall rack in front of the pit. Totally enclosed and lockable 6ft long by 30” wide by 2ft tall storage box for keeping things safe, clean, and dry. Finally one more 6ft long 30” wide by 2ft tall storage rack in the back of the trailer. Either use it for storage or use it to house your deep fryers etc. See photos. The Trailer itself is constructed with 5” C-channel, custom positioned 7000lb axles, 2 5/16” hitch, safety chains, breakaway kit, lights NEW 10-PLY TIRES, and your choice of either Silver or Chrome wheels. For Chrome wheels, lug nuts, and center caps, add $575.
Trailer photos show the back wood rack upgraded to a fully enclosed steel lockable storage box. An open top expanded metal wood rack is standard.
We can alter the size of the trailer so if this setup is not what you like feel free to let us put this Smoker on the size trailer you want!
All doors and firebox door are lined with flat-strap for less heat escape. Spring handles on vents and doors to keep hands from getting burned etc. Temp gauges, and 10” shelf around the pit etc. 1200-degree high heat paint. Personally pre-seasoned with Pecan wood.
All in all this is a very efficient unit. The ENTIRE rig is constructed from ¼”-3/8″ steel. It will last a very long time and holds heat better than any I’ve seen. The reverse flow system, smoker, front charcoal grill, counter-weighted doors, and dual stacks at grate level, all make these pits one of a kind and a super flexible cooking unit. Premium Heavy-duty tandem trailer with ample storage and diamond plate fenders really make this unit complete.
I can have your initials, ranch brand, or logo cut out with a computer driven plasma cutter and suspended on top of the pit for an added touch of personalization. Contact us for details.
